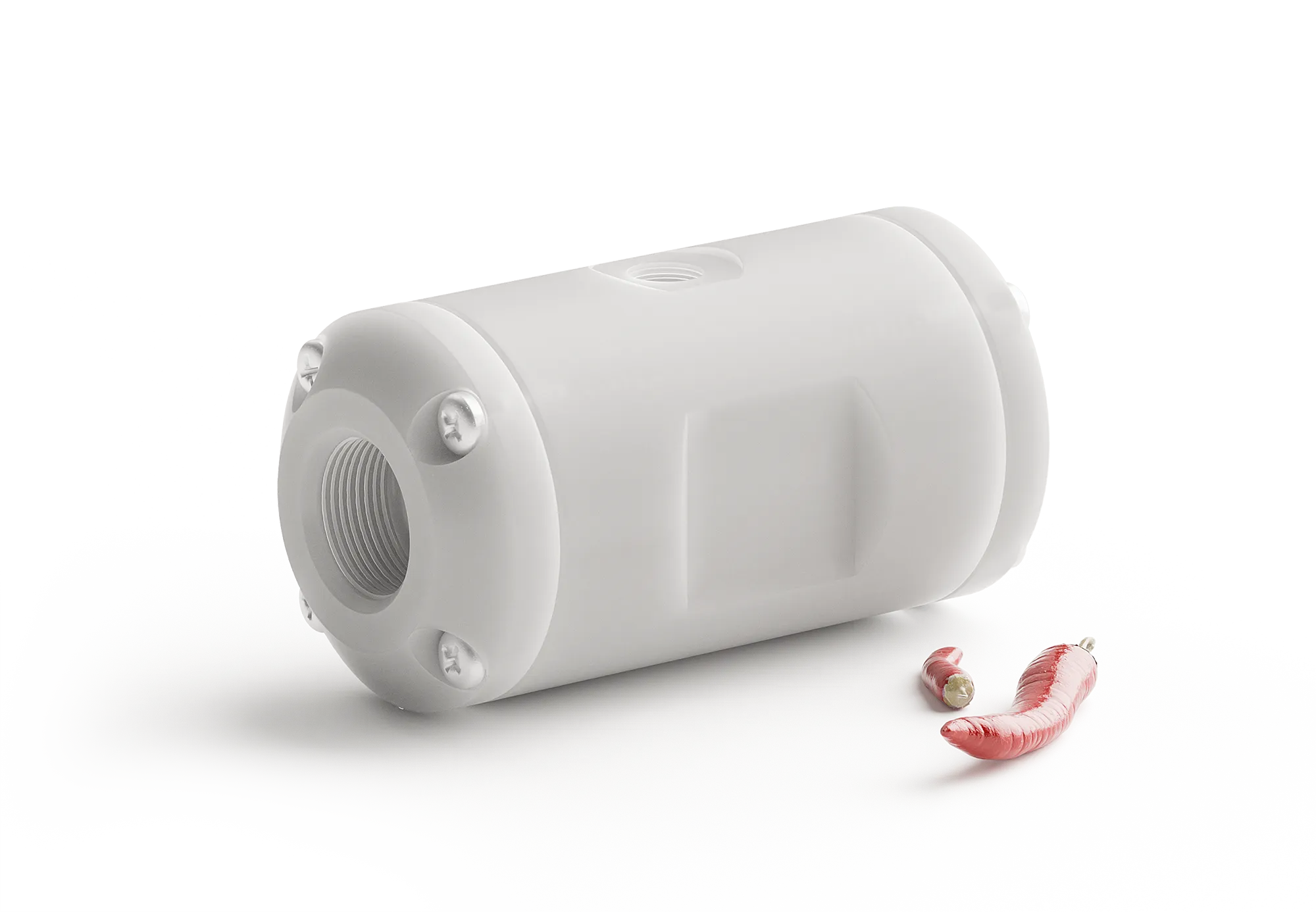

series 00

screw connection G 3/8” – G 1”
DN10 – DN25

material specifications

housing, not in contact with medium:
POM plastic (polyoxymethylene), natural white
threaded cover:
POM plastic (polyoxymethylene), natural white
srews:
galvanized steel
sleeve:
as selected

CAD data

size 10       dxf / stp
size 15       dxf / stp
size 20       dxf / stp
size 25       dxf / stp
