Series 10 High-Performance Valves

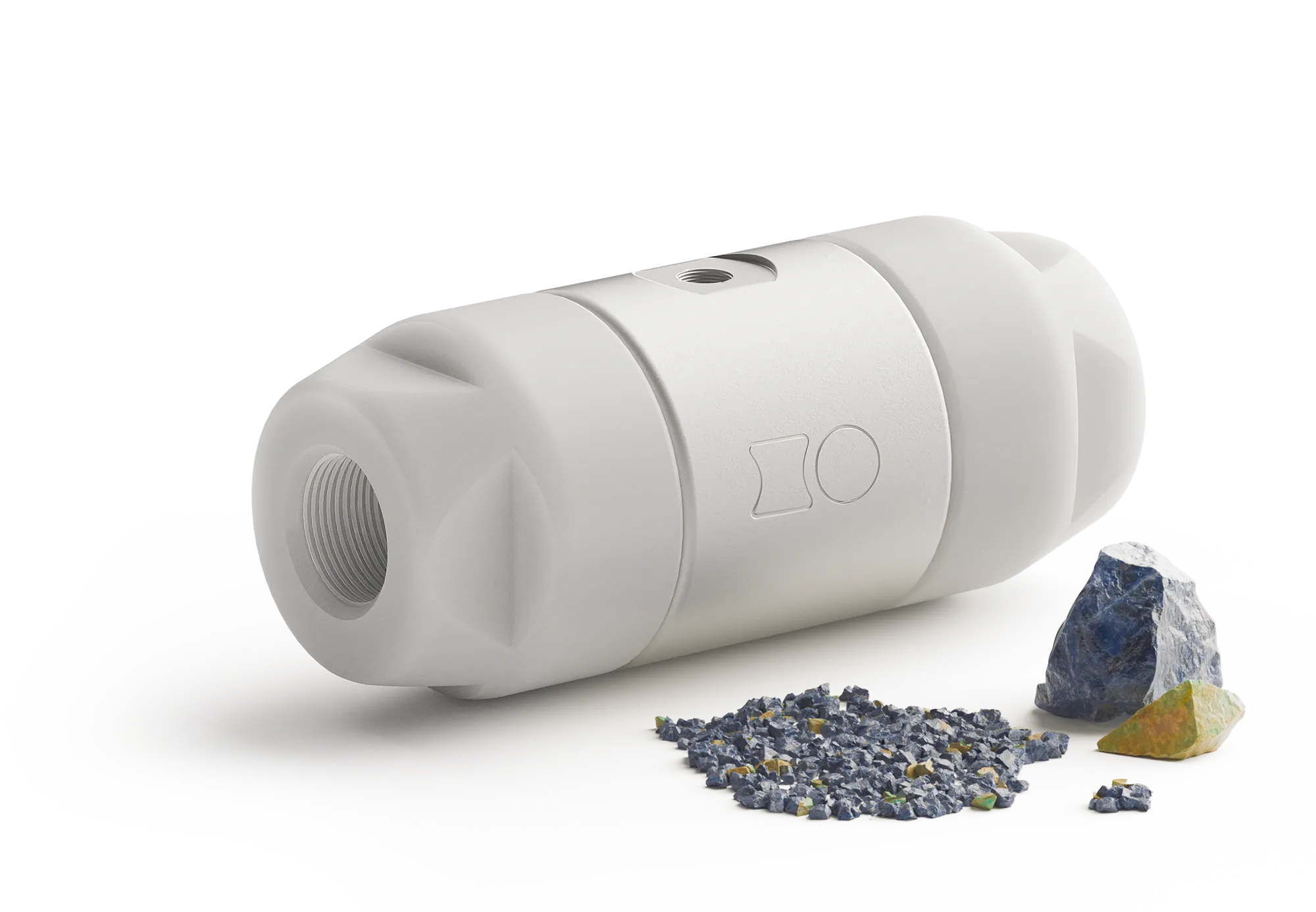

Pinch valve series 10 - adjustable design for controlling fluid flow in machinery

Nominal Widths:

G ½”, ¾”, 1”, 1¼”

Threaded cap

POM plastic (polyoxymethylene), natural white

Clamping cone:

POM plastic (polyoxymethylene), natural white

Sleeve:

Sleeve quality ---.; Version: Standard

Housing (not in contact with medium):

Aluminium alloy 6026 /6082, colourless anodized

Choose your valve settings

Series

DN

Sleeve quality

NR

NR-L

NR-LH

NBR-LH

EPDM-L

FPM

CR

CSM

Version

Standard

10

015.

020.

025.

032.

000.

010.

020.

120.

212.

303.

400.

500.

000

100

*100 Silicone-Free assemble

Order number

10---.---.---

1

Dimensions

Series 10 Dimensions

Controls/ Accessories

featured control 1featured control 2featured control 3featured control 4

Downloads

Special version

Special versions on request
