Series 60 High-Performance Valves

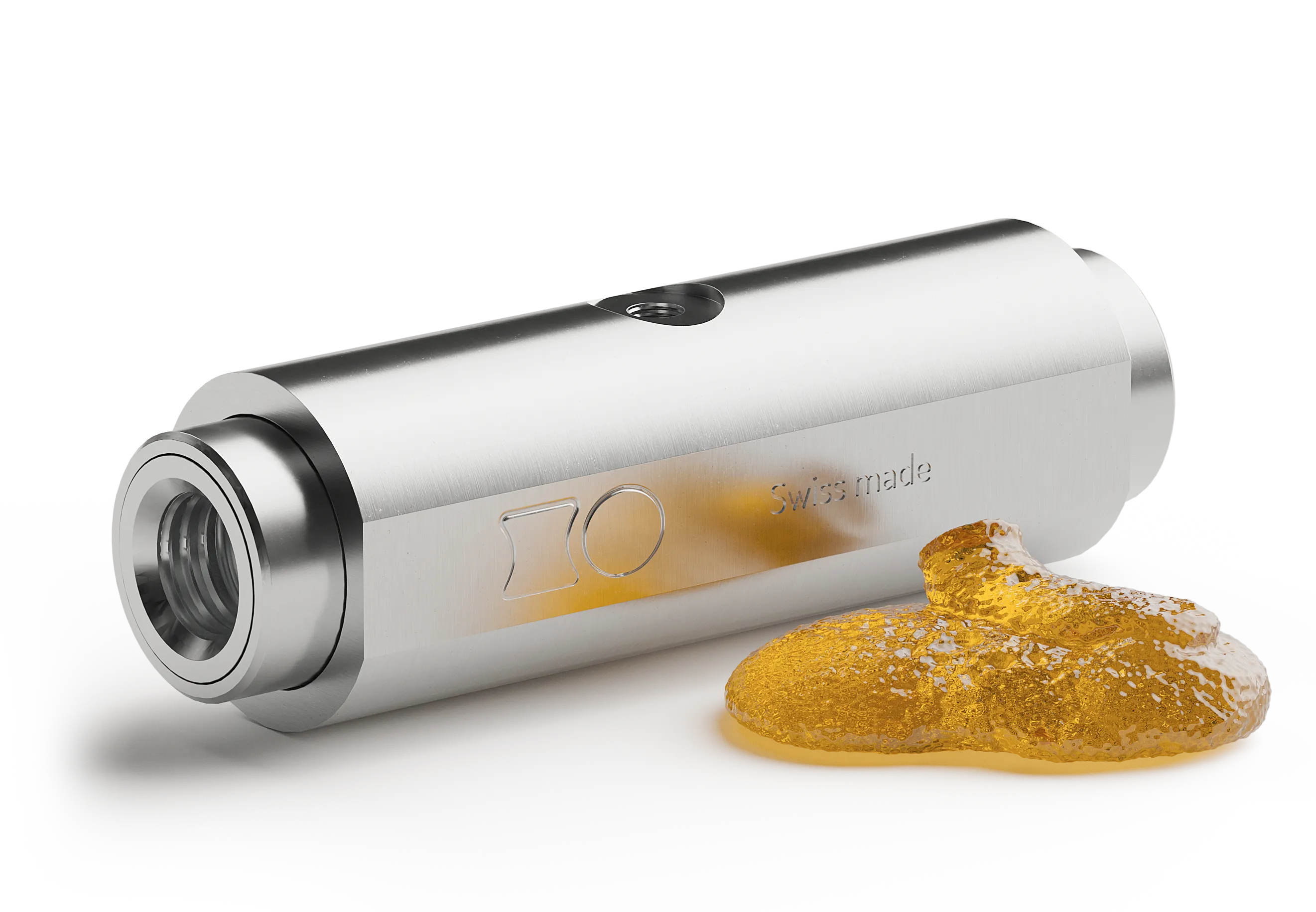

Pinch valve series 60 - constructed with stainless steel and a simple screw connection for easy installation and maintenance

Nominal Widths:

G ¼”

Screw connection

Stainless steel 1.4404

O-Ring:

Nitrile rubber NBR

Sleeve:

Sleeve quality ---.; Version: Standard

Clamping cone:

POM plastic (polyoxymethylene), natural white

Housing (not in contact with medium):

Stainless steel 1.4404

Choose your valve settings

Series

DN

Sleeve quality

NR

NR-L

NR-LH

NBR-LH

EPDM-L

FPM

CR

CSM

Version

Standard

60

006.

001.

011.

021.

121.

212.

303.

401.

501.

000

100

*100 Silicone-Free assemble

Order number

60---.---.---

1

Dimensions

Series 60 Dimensions

Controls/ Accessories

featured control 1featured control 2featured control 3featured control 4

Downloads

Special version

Special versions on request
