Food and beverages

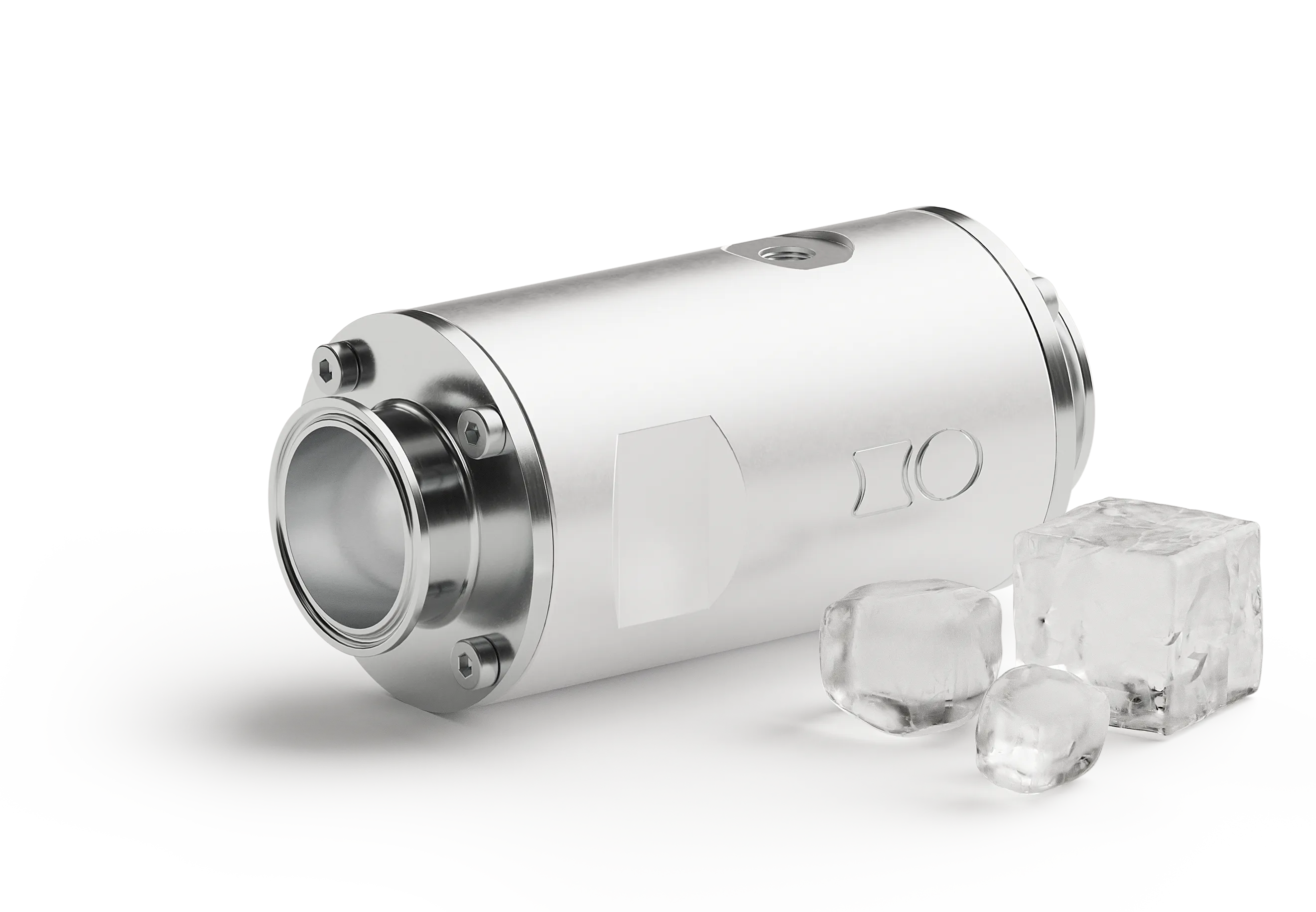

Series 88 High-Performance Valves
Nominal Widths:
Tri-Clamp ½”, ¾”, 1”, 1¼”, 1½”, 2”, DIN 32676 ser. A
Screws
Stainless steel A4
Tri-Clamp:
Stainless steel 1.4404
Sleeve:
Sleeve quality ---.; Version: Standard
Housing (not in contact with medium):
Aluminium alloy 6026, colourless anodised
Choose your valve settings
Series
DN
Sleeve quality
NR
NR-L
NR-LH
NBR-LH
EPDM-L
FPM
CR
CSM
Version
Standard
88
015.
020.
025.
032.
040.
050.
001.
011.
021.
121.
212.
303.
401.
501.
000
100
ATEX-Version:
NR-E
NR-LE
NBR-LE
EPDM-LE
031.
061.
161.
261.
ATEX
000
100
*100 Silicone-Free assemble
Order number
88---.---.---
